Product Name:

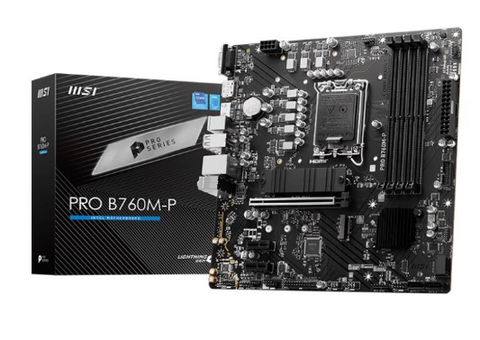

MSI PRO B760M-P (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO B760M-P

EAN:

4711377086578

UPC:

824142319802

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel B760

CPU Interface:

Socket 1700

CPU Support:

https://www.msi.com/Motherboard/PRO-B760M-P/support#cpu

RAM Technology:

DDR5 (Quad Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6800+ (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

1

PCI Express 4.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

Realtek RTL8111H Gigabit LAN

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Mouse Port:

1

Back PS/2 Keyboard Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 3.2 Header(s) Gen 1:

2

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x RGB LED connector
• 4 x EZ Debug LED

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

27cm

Package Length:

30cm

Package Height:

5.3cm

Gross Weight:

0.91Kg
