Product Description

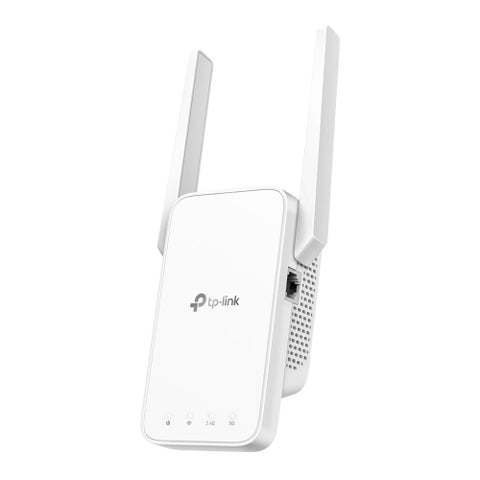

TP-LINK (RE215) AC750 (300+433) AC Dual Band Universal Wall-Plug WiFi Range Extender
Primary Function
Range Extender
Interface(s)
1 x 10/100M Ethernet Port (RJ45)
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Antenna
2 x External Antennas
Button(s)
WPS Button, Reset Button
Power Consumption
9.5W (max power consumption)
Dimensions (W x D x H)
89 x 35.0 x 124.1 mm
Frequency
2.4GHz: 300 Mpbs
5GHz: 433 Mbps
Reception Sensitivity
5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBm
Wireless Modes
Access point mode
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions
Management
Tether app or Web UI
Advanced Functions
See Overview
Environment (°C)
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
Wi-Fi Range Extender RE215
Quick Installation Guide
